REPAIR HARNESS & PIGTAILS

Misc. Pigtails Part 1

PART# 35-05
SINGLE CONTACT PIGTAIL
FOR STANDARD BASE BULBS
BULBS: 63, 67, 81, 87, 89, 93, 209,
1003, 1073, 1129, 1133, 1141, 1156

A close up of the handle on a wooden stick

PART# 35-04
SINGLE CONTACT PIGTAIL
FOR MINI BASE BULBS
PHENOLIC DISC & BRASS CONTACTS
BULB: 51, 53, 55, 57, 57X, 1895

A close up of the springs on a stick

PART# 35-06
DOUBLE CONTACT PIGTAIL
FOR STANDARD BASE
BULB: 64, 68, 82, 88, 90, 94, 210,
1004, 1074, 1130, 1158, 1176

A close up of the top part of a stick

PART# 35-07
DOUBLE CONTACT PIGTAIL
STANDARD BASE
BULB: 1034, 1154, 1157

A red and black cord with two brass locks.

PART# 35-13
SEALED BEAM HEADLIGHT OR FLASHER PIGTAIL

A black wire with two wires attached to it.

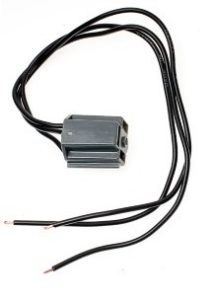

PART# 35-14
2 OR 3 TERMINAL SEALED BEAM
HEADLIGHTS OR TERMINAL FLASHERS

A black wire with two wires attached to it.

PART# 35-15
DOUBLE CONTACT PIGTAIL
PARK/STOP/TAIL/TURN LAMPS
GM 1973 – 1963, AMC 1979 – 1969
REPLACES: 4486948, DELCO LS-3, GM2974309,
GM2983540, GM6299087, GM8912698
BULB: 198, 1016, 1034, 1154, 1157

A white light with wires on top of it.

PART# 35-16
DOUBLE CONTACT PIGTAIL
SPRING CLIP MOUNT 7/8” – 1-1/8”
BULB: 168, 194, 198, 1016, 1034, 1154, 1157

A close up of the light on a white background

PART# 35-19
DOUBLE CONTACT PIGTAIL
PARK/STOP/TAIL/TURN LAMPS
FITS: AMC, GM, UNIVERSAL, WILLYS
BULB: 198, 1016, 1034, 1154, 1157

A close up of the end of an electric cord

PART# 35-21
DOUBLE CONTACT PIGTAIL
PARK/STOP/TAIL/TURN LAMPS
BULB:198, 1016, 1034, 1154, 1157

A close up of the light on a white background

PART# 35-23
DOUBL CONTACT PIGTAIL
PARK/STOP/TAIL/TURN LAMPS, AMC 1980 – 1972
CHRYSLER PRODUCTS 1975, GM 1975 – 1963
REPLACES: AMC- 4486949, 4488908
CHRYSLER- 3764747, 3744750
FORD- D0AZ-12300, D1AZ-13410-B, D20Z-B
GM- 890990, 2974309

PART# 35-28
SINGLE CONTACT PIGTAIL
SIGNAL/PARK/STOP/TAIL
BULB: 63, 67, 81, 87, 93, 209,
1003, 1073, 1129, 1133, 1141

A light bulb with wires attached to it.

PART# 35-29
DOUBLE CONTACT PIGTAIL
PARK/STOP/TAIL/TURN LAMPS
SAME AS 35-43 WITHOUT BOOT
BULB: 198, 1016, 1034, 1154, 1157

A light bulb with wires attached to it.

PART# 35-30
DOUBLE CONTACT PIGTAIL
SIGNAL/PARK/STOP/TAIL
BULB: 198, 1016, 1034, 1154, 1157

A light bulb with wires around it

PART# 35-43
DOUBLE CONTACT PIGTAIL
PARK/STOP/TAIL/TURN LAMPS
SAME AS 35-29 WITH BOOT
BULB: 1016, 1034, 1154, 1157, 1198

A close up of the end of an electrical cord

PART# 35-42
UNIVERSAL PIGTAIL WITH GROUND
TAB TERMINAL
BULB: 1157

A blue and gray connector is connected to wires.

PART# 35-38
BACK-UP PIGTAIL
FORD D3AC-13410
BULB: 160, 161, 162, 163, 165,
256, 257, 258, 259, 1156

A black and purple wire is connected to an electrical connector.

PART# 35-35
DOUBLE CONTACT PIGTAIL
STOP/TAIL/TURN SOCKET
REPLACES: FORD E0TZ-13410A
BULB:164, 165, 258, 259, 1157

A light with wires attached to it

PART# 35-34
DOUBLE CONTACT PIGTAIL
STOP/TAIL/TURN LAMPS 1991 – 1969
REPLACES GRAY OEM SOCKET
REPLACES: GM- 8903202, 8914822, IHC- 571722C91
BULB: 1034, 1154, 1157

A light bulb with wires attached to it.
