REPAIR HARNESS & PIGTAILS

GM Pigtails Part 1

Del Mar Wire & Products stocks a full line of Repair Harness Pigtails form Double contact socket for Stop/ Tail/ turn lamps to Ignition Switch pigtails, Alternator 3 way female Repair Pigtails, Headlight Switch Pigtails, A/C Compressor Harness W/Diode Pigtails, Coolant Sensor Pigtails, Fan Speed Switch Pigtails, Throttle Body Fuel Injectors Pigtails, Map Sensor Pigtails, Manifold Air Temp Sensor ( MAT ) Pigtails,Window Lift Motor Pigtails, Ignition Coil Pigtails, Halogen Socket Pigtails, Exhaust Oxygen Sensor Pigtails, Neutral & Park Switch Pigtail also fits Alternator, Wheel / Vehicle Speed Sensors & rear Windshield Wiper Switches. Distributor Module Pigtails, Crankshaft Sensor Pigtail, Wheel Speed Sensor & Horn Pigtails, Digital Mass Air Flow Sensor Pigtails.

We also carry Door Switch Pigtails, Fan Control Switch Pigtails, Master Front Door Switch Pigtails, Oil Pressure Switch Pigtails, Turn Signal Switch Pigtails, Electronic Ride Control Sensor Pigtails, Transmission Converter Clutch Pigtails, Brake Light Switch Pigtails, Garage Door Opener Pigtails, Glow Plug Control Pigtails, Front Axle 4WD Actuator Pigtails, Neutral Safety Switch Pigtails, Crank Shaft Pigtails, ABS Wheel Speed Sensor Pigtails, Battery Accessory Circuit Pigtail it plugs into fuse box marked “BAT” It’s always on for Clocks, Horns, Alarms ECT.  We carry Repair Harness Pigtails for most American and Foreign made Vehicles. If you need Assistance in finding what your looking for please call (800) 826-5658

PART# 35-01
GM- AC DELCO 17 ALTERNATOR
3 – WAY FEMALE REPAIR HARNESS

An illustration of a three-prong power plug with its cable trailing off to the left.

PART# 35-12
GM – HEADLAMP SWITCH – REPAIR HARNESS
6-18GA, 1-14 GA & 1-12GA 6†LEADS
CHEVROLET & GMC TRUCKS

Four-pin electrical connector with color-coded wires.

PART# 35-22
GM DOUBLE CONTACT PARK/STOP/TAIL/TURN LAMPS
REPLACES:594790
BULB:196,1016,1034,1154,1157

Car headlight projector unit.

PART# 35-24 (DISCONTINUED)
GM IGNITION SWITCH PIGTAIL
GM COMPACT CARS 1965 – 1968

Electrical cable harness with a black plastic connector.

PART# 35-25
GM BACK-UP AND MARKER LAMPS
GM VARIOUS MODELS 1990 –
REPLACES: 12083005, LS11
BULB: 3057

Electric cable with a two-pin connector and a protective cover.

PART# 35-31
GM STOP/ TAIL/ TURN SIGNAL
GM VARIOUS MODELS 1990-
REPLACES: 12083006, LS12
BULB: 3057

Three-wire electrical connector on a white background.

PART# 35-33
GM DOUBLE CONTACT PARK/STOP/TAIL/TURN
LAMPS 1973 – 1963
REPLACES: 8902485, 8902487, 8903283, 8990908
BULB: 1034, 1154, 1157

PART# 35-37
GM DOUBLE CONTACT SOCKET
PARK/STOP/TAIL/TURN LAMPS 1993 – 1975
REPLACES: 8919916, 12013813
BULB: 1034, 1154, 1157

PART# 35-39
GM DOUBLE CONTACT
STOP/TAIL/TURN LAMPS 1991 – 1975
DELCO LS-1
BULB: 1034, 1154, 1157

PART# 35-41
GM DAYTIME RUNNING/ BACK-UP/ CORNERING
PARK, TURN/ STOP,TAIL/ TAIL,TURN SIGNAL
GM CARS AND TRUCKS 1999-
REPLACES: 12083680, 12159662, LS54
BULB: 3057, 3157, 3357, 4157, 4114K

Electrical cable socket on a white background.

PART# 35-47
GM IGNITION SWITCH PIGTAIL (NLA)
PONTIAC 1965 – 1968

PART# 35-54
GM PARK, TURN/ STOP,TAIL/ TURN SIGNAL
GM LIGHT DUTY TRUCKS 1999-
REPLACES: 15306147, LS92
BULB: 3057, 3157, 3357, 4157, 4114K

Fondue set with green bowls and silver forks.

PART# 35-55
GM BACK-UP/ TURN SIGNAL
GM CARS AND LIGHT DUTY TRUCKS 1999-
REPLACES: 15306312, LS97
BULB: 3156, 4156

Close-up view of an electrical connector component.

PART# 35-56
GM SINGLE CONTACT
BACK-UP LAMP 1980 – 1961
BULB: 1156

PART# 35-57
GM DAYTIME RUNNING, TURN SIGNAL
GM CARS AND LIGHT DUTY TRUCKS 1999-
REPLACES:15306157, LS94
BULB: 3156, 4156

Small electronic component with wires.

PART# 35-58
GM BACK-UP LIGHT PIGTAIL
CHEVROLET, PONTIAC & BUICK 1969 – 1974
CORNERING LIGHTS BUICK 1971 – 1974
REPLACES: 8904437
BULB: 1156

Electric motor with a gearbox, isolated on a white background.

PART# 35-59
LICENSE LAMP PIGTAIL
GM/GMC TRUCK W/STEP BUMPER
67 REPLACEMENT BULB

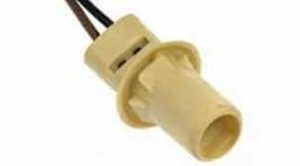

PART# 35-66
GM DOUBLE CONTACT
LICENSE/PARK/SIDE MARKER/STOP/TAIL
LAMPS 1993 – 1970
REPLACES: 8912750
BULB: 194, 194A

3-pin electrical plug connector on a white background.

PART# 35-67
GM DOUBLE CONTACT
CORNERING/LICENSE/SIDE MARKER/STOP/TAIL
LAMPS 1993 – 1968
REPLACES: 12001470, DELCO LS-5
BULB: 161, 168, 194, 194NA

Damaged electrical plug with burnt prongs.

PART# 35-75
GM DIMMER SWITCH PIGTAIL 1986 – 1961
FITS: DELCO D809
USE DIMMER SWITCH PART# 6-7762

PART# 35-79
GM ALTERNATOR PIGTAIL
FOR ALTERNATORS WITH DELCAT OR EXTERNAL VOLTAGE
REGULATORS 1974 – 1962
REPLACES: 2977373, FITS DELCO 7701

PART# 35-80
GM ALTERNATOR PIGTAIL 1986 – 1970
REPLACES: 6294493, FITS DELCO 7731

A red sphygmomanometer air pump and bulb on a white background.

PART# 35-81
DELCO/REMY STARTER SOLENOID PIGTAIL

A close up of an electrical connector

PART# 35-83
GM ALTERNATOR PIGTAIL
WITH EXTERNAL VOLTAGE REGULATOR 1971 – 1961
IHC- 1980 – 1963
REPLACES: 2977607, FITS DELCO D635, DELCO 7700

PART# 35-87
GM A/C COMPRESSOR HARNESS WITH DIODE
GM VEHICLES 1983 – 1989
REPLACES: 12101907, PT-179, 88862248, PT-2329

A black cable with a yellow and white label.

PART# 35-98
GM FUEL- INJECTOR
GM CARS & LT. DUTY TRUCKS 1999- 2008
REPLACES: 88988814, PT-2135

Exploded view of an automotive sensor with a repair harness and a face view label.

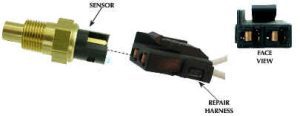

PART# 35-100
GM COOLANT TEMP, GLOW PLUG SESOR
GM CARS & LT. DUTY TRUCKS 1984- 2000
SWITCH# 15631399
REPLACES: 12055488, PT-110, 88862249, PT-2330
SENSOR# 25036628, 23504006

Temperature sensor with repair harness and connector face view.

PART# 35-102
GM TAIL LAMP PIGTAIL
GM PICK-UP TRUCKS (FULL SIZE) 1988
LAMP BASE CIRCUIT BOARD 16511565 & 66

Four-pin electrical connector with secured green wires.

PART# 35-103
GM COOLING FAN RELAY PIGTAIL
GM 1985/
REPLACES: 12101922, PT-194

Black plastic electrical connector with multiple pins and a cable harness attached.

PART# 35-109
GM A/C COMPRESSOR PIGTAIL
HIGH PRESSURE SWITCH
GM ALL W/V-5 COMPRESSOR
INDEX SLOT AT 1 – O’CLOCK
REPLACES: 12085521, PT-131

Black electrical plug with two prongs on a white background.

PART# 35-110
GM A/C COMPRESSOR PIGTAIL
LOW PRESSURE SWITCH
GM ALL W/V-5 COMPRESSOR
INDEX SLOT AT 3 – O’CLOCK
REPLACES: 12085503 & PT-124

Black power plug adapter on a white background.

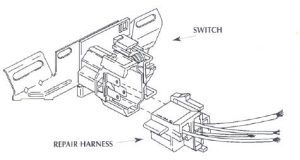

PART# 35-117
DIMMER SWITCH PIGTAIL
GM 77-92, AMC, JEEP, EAGLE 79-89
SWITCH# 1997045, 7838234, 3239703
REPLACES:594790/ BULB:196,1016,1034,1154,1157

A black wire connector with two wires attached to it.

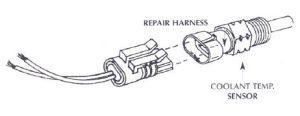

PART# 35-118
GM & FORD COOLANT TEMP. SENSOR, SPEED SENSOR PIGTAIL
GM & FORD 1985/
REPLACES: 12046623,12101899,12126469,15306031,88987993, PT169, PT739,PT1158,PT1798,3U2Z-14S411-EMMA,WPT-751

A purple and white connector with wires attached.

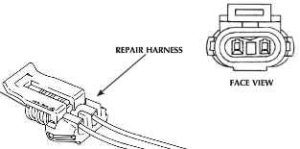

PART# 35-119
GM VAPOR CANISTER PURGE SOLENOID
GM CARS & LT. DUTY TRUCK 1990/
SATURN 2007- 2009
SOLENOID# 1997252, 1997279, 1997262, 1997289
REPLACES: 12101858, 13585860, PT-250, PT-2784

A red and blue connector is connected to the wire.

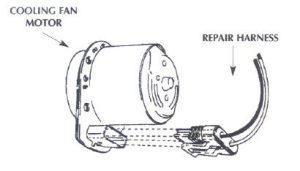

PART# 35-121
GM COOLING FAN MOTOR
GM 1982/
MOTOR#22074968, 22074969, 22067446, 22048271
REPLACES: 12101917, PT-189

Diagram of a cooling fan motor and a repair harness.

PART# 35-122
GM THROTTLE BODY FUEL INJECTORS PIGTAIL
GM VEHICLES 1982/
REPLACES: 12029960, 12102568, PT-285

Plastic electrical connector with two wires attached.

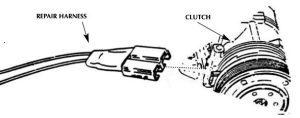

PART# 35-123
GM A/C COMPRESSOR CLUTCH
GM 1989/
REPLACES: 12101937, PT-209

Diagram showing the connection of a repair harness to an air conditioner clutch assembly.

PART# 35-126
GM MAP SENSOR PIGTAIL
FITS ALL MODEL W/MANIFOLD MAP SENSOR 16137039
GM 1993 – 1982
REPLACES: 12085502

PART# 35-135
MANIFOLD ABSOLUTE TEMP (M.A.T.) SENSOR PIGTAIL
GM VEHICLES 1990/
REPLACES: 12085524, PT-134

Diagram showing a sensor connected to a repair harness.

PART# 35-137
GM A/C PRESSURE SWITCH PIGTAIL
FITS 25527510/ 1989 – 1984
REPLACES: 12085507

PART# 35-142
GM A/C COMPRESSOR COOLANT, COOLING FAN TEMP
SWITCH & KNOCK SENSOR PIGTAIL FOR 1982/
SWITCH# 3040674, 14043275, 14043276
SENSOR# 14056017, 14056018
REPLACES: 12051234, 12102621, PT-308

Diagram showing a temperature sensor connected to a repair harness.

PART# 35-143
GM RELAY PIGTAIL
FUEL PUMP, BLOWER MOTOR, DAYTIME RUNNING LAMPS
RELAY#14089936
REPLACES: 12085501, 15306002, PT-122, PT-1115

Exploded view diagram of a relay connected to a repair harness.

PART# 35-146
GM MANIFOLD AIR TEMP SENSOR (M.A.T.)
GM 1985/
SENSOR# 25036751
REPLACES: 12046624, 12102620, PT-307

Exploded diagram of a repair harness connected to a m.a.t. sensor.
